200 GDP Water Filter
Related products
-
400 GDP Water Filter
400 GDP Water Filter

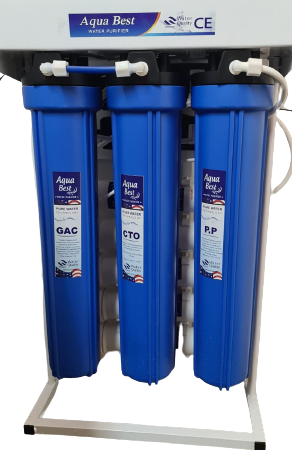

Aqua Best Commercial RO System 400 GDP Water Filter In Dubai UAE
Aqua Best Provides 400 GDP Water Filter in Dubai, U.A.E. for Commercial RO System
Aqua Best Commercial RO System 400 GDP Water Filter in Dubai, UAE
Aqua Best Commercial RO System 400 GDP Water Filter in Dubai, UAE is best for commercial and residential use. Aqua Best Commercial RO System 400 GDP Water Filter in Dubai, UAE is a medium-range good product in terms of price so it is highly popular and more in demand. Aqua Best Commercial RO System 400 GDP Water Filter in Dubai, UAE is available for all the states in UAE
Aqua Best Commercial RO System 400 GDP Water Filter in Dubai, UAE is the process of forcing water through a semipermeable membrane to remove over 99.009% of the dissolved solids. Aqua Best Commercial RO System 400 GDP Water Filter in Dubai, UAE have different rates of flow in terms of gallons per day (gpd) making some RO systems more suitable for commercial or domestic use.
Aqua Best Commercial RO System 400 GDP Water Filter in Dubai, U.A.E.
Description:-
- 20″ 5 micron Sediment
- 20″ Carbon Filter (GAC)
- 20″ Carbon block ( CTO)
- Booster Pump & Transformer x2
- Dow R.O. membranes(100GPDx2,
- Post Granular Carbon filter
- High/Low Pressure Switch
- Auto Flush Controller(option)
- Solenoid Valve 3/8″,
-
800 GPD RO SYSTEM
800 GPD RO SYSTEM
We are well acknowledged as a leading manufacturer and supplier of supreme quality range of Industrial RO System (800GPD). Supreme quality raw materials and innovative technologies are utilized in manufacturing.
This is our most durable reverse osmosis system with unmatched value in quality, convenience, and price. NSF-grade high quality parts are used to build this tough system. All APEC compact commercial RO systems are constructed of premium components, high quality filters and membranes to guarantee high rejection rates and output speed.Specification
Production Capacity: 800GPD / 100LPH @ 25°CSalt Rejection: 96-98%Recovery Rate: 50-75%Connection: 3/8” Feed, 1/2”Permeate, 1/2”Concentrate
Components
RO Membrane: 2.5”x40”Membrane Housing: SS304 body + ABS end caps – 2054 x 1pcPump: Italian Rotary Vane Pump 400LPH@12Bar + 1/2HP Taiwan MotorFrame: Electro-Plated SS304Pre-Filter: (20” KF Housing + PP Cartridge 5um) x 2 setsSolenoid Valve x 2Low Pressure Switch x 1Concentrate Recycling Valve x 1Control Panel ComponentsRO Controller: Pre-programmed RO working procedures + permeate TDS monitor Pressure Gauges x 2: Filter Feed + RO FeedFlow Meters x 2: RO Permeate + RO ConcentratePressure Regular: SS316Main Power Switch x 1Application:a. Water Storeb. Spot Free Car Washc. Laboratory Electro-Platingd. Factory Small Bottle Water Filling Plante. Other Manufacturing Facilitiesf. Brackish Water Desalination (TDS600-1500ppm) -
400 TO 600 GPD RO WATER PURIFIER SYSTEM
Our company is one of the top manufacturer and supplier of Industrial RO System (300-600GPD). These are manufactured by utilizing high quality raw materials and sophisticated technology.
The 600gpd Under Counter Reverse Osmosis System provides safe, pure water using Reverse Osmosis Technology. It’s capable of removing over 90% of total dissolved solids, +99% of all organics and +99% of all bacteria. System installs neatly under the sink. Comes with long reach faucet, and necessary installation hardware.
-
200 400 GPD RO WATER PURIFIER SYSTEM
200 400 GPD RO WATER PURIFIER SYSTEM
Light Commercial / Whole House Reverse Osmosis System that produces 200 gallons per day. Wall mounted. System uses One 2.5″ x 14″ TFC HF1 Reverse Osmosis Membrane, for maximum rejection of impurities and high flow. Three vertical 20″x2.5″ cartridges are: Sediment Filter, Carbon Block for chlorine, odor and VOCs removal, and a 5-stage GAC / Eagle ERA filter.This Light commercial RO system is designed to be modular, requires little maintenance, and is built using commercial grade components, unlike a lot of lower cost 200 and 400 gpd RO systems on the market that use components for under sink systems and are not usually designed for commercial/whole house use. Our 200 and 400 gpd system has been carefully thought through and is designed for commercial use.
RO WITH STORAGE TANK KIT
Ready to use this as an top of the line protection to your home’s drinking water? Here’s a Storage Tank Kit, ready to be installed to provide you with a much larger range of applications. Filtered water will be stored and drawn from the tank, eliminating regular Whole House RO system’s drawbacks such as low pressure and low flow.STORAGE TANK KITS COMPONENTS
- RO System
- Water Tank – (165, 220, or 550 gallons storage tank) , this system of 200 gpd will come with 20 gallon tank if Storage Tank Kit is ordered.
- Pump
- Float Switches
LIGHT COMMERCIAL RO 200 / 400 GPD SYSTEM FEATURES
- Membrane: One 2.5″ x 14″ TFC HF1 Reverse Osmosis Membrane 200 GPD each
- Membrane Housing: One 2.5″ x 14″ Champ membrane housings, Features a patented design and requires no tools for servicing.
- Pump: 8800 Booster Pump, uses 110V AC.
- Sediment Filter: One 2.5″ x 20″ Big White 5 micron sediment filter, Removes sediments and protects the system.
- Carbon Block Filter: One 2.5″ x 20″ Big White 5 micron carbon block, Removes chlorine, odor, and taste from incoming feed water.
- GAC/ERA Filter: One 2.5″ x 20″ coconut shell GAC (similar to KDF).
- Filter Housing: Three 2.5″ x 20″ double O-ring filter housings, Offers durability and improved sealing capabilities.
- RO Tank Pressure Switch, with 1/4″ JG Ports, 20-40 PSI.
- Solenoid Valve: 24V Solenoid Valve.
- Auto Flush Valve: One Auto-Flush Valve.
- Easy Maintenance & Operation: feature a compact design and have all of their components strategically located for easy access and inspection.
Design: Wall Mount.
Weight: Standalone: 50 lbs. , with Storage Tank Kit: 120 lbs.
Minimum Feed Pressure: 35 PSI
Operating Pressure: 150 PSI
Dimensions: 7x22x31
Feed Connection: 1/4″
Maximum Feed Water TDS: 1000 ppm
PH range: 3-11
Gallons per day: 200 at 77 FSYSTEM OPTIONAL FEATURES
Select “With Options” if you want Features Below to be installed by us:- TDS Meter: One panel mount TDS meter, provides you with accurate readings of the feed and product water quality.
- Concentrate Re-cycle Valve: This feature offers a higher recovery rate for the system by taking a percentage of the waste water and feeding it back into the system.
Inquire about other optional components:
- 2.5” x 14” Stainless Steel Membrane Housing, 3/8” FNPT
200 400 GPD RO WATER PURIFIER SYSTEM
